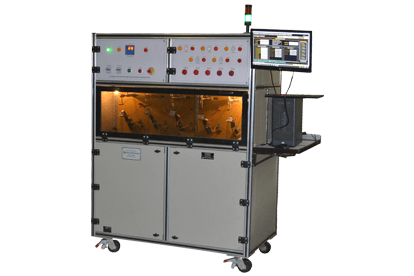

SCR ELEKTRONIKS have developed HIGH VOLTAGE INCLINED PLANE AND EROSION TESTER to carry out test specified in many standard to cover test method for the evaluation of the relative tracking and erosion resistance of insulating solid using liquid contaminant (ASTM D2303). Perform the Initial Tracking Voltage Test, Time to track Test, And Erosion Test as per selection.
“Microcontroller based programmable logic controller” to carry out test sequence having 20 *4 LCD and membrane keypad for display of set test parameters and test status.
Specially designed electrodes as per product under test.
Lighting arrangement in test chamber.
Facility to easily calibrate the system for voltage as well as time calibration.
Seven segment LED display for voltage and current indication.
Input supply: 1 phase 230 V AC, 50hz.
Output voltage: Regulated 100 V to 7500 v AC programmable.
Series ballast selection: 1 k, 10 k,20 k and 50k with link.
Tripping current setting: 60 mA.
Electrode system: Stainless still material.
Angle of inclination: 45 deg.
Fixture arrangement: Made for flat test specimen as well as for various size cables.
Liquid deliver capacity: 0.075 ml/ min to 0.900 ml/ min ,programmable.
Test chamber: UV protected Glass door with door interlock.
Enclosure: built with aluminium profile and MS covers with powder coating.
Dimensions: 110 cm X 110 cm X 70 cm (L X H X D)
The product can be customized as per the number of stations: 1 and 5 stations. Additionally, the product can be microcontroller based with each microcontroller controlling an individual station, or a PC based wherein the PC controls all the stations simultaneously and independently of each other.
The tester is used to test insulation testing of special purpose cables such as armoured cables. It can also be used for conventional cables. The tests covered are time to track method, initial tracking voltage test and erosion test
